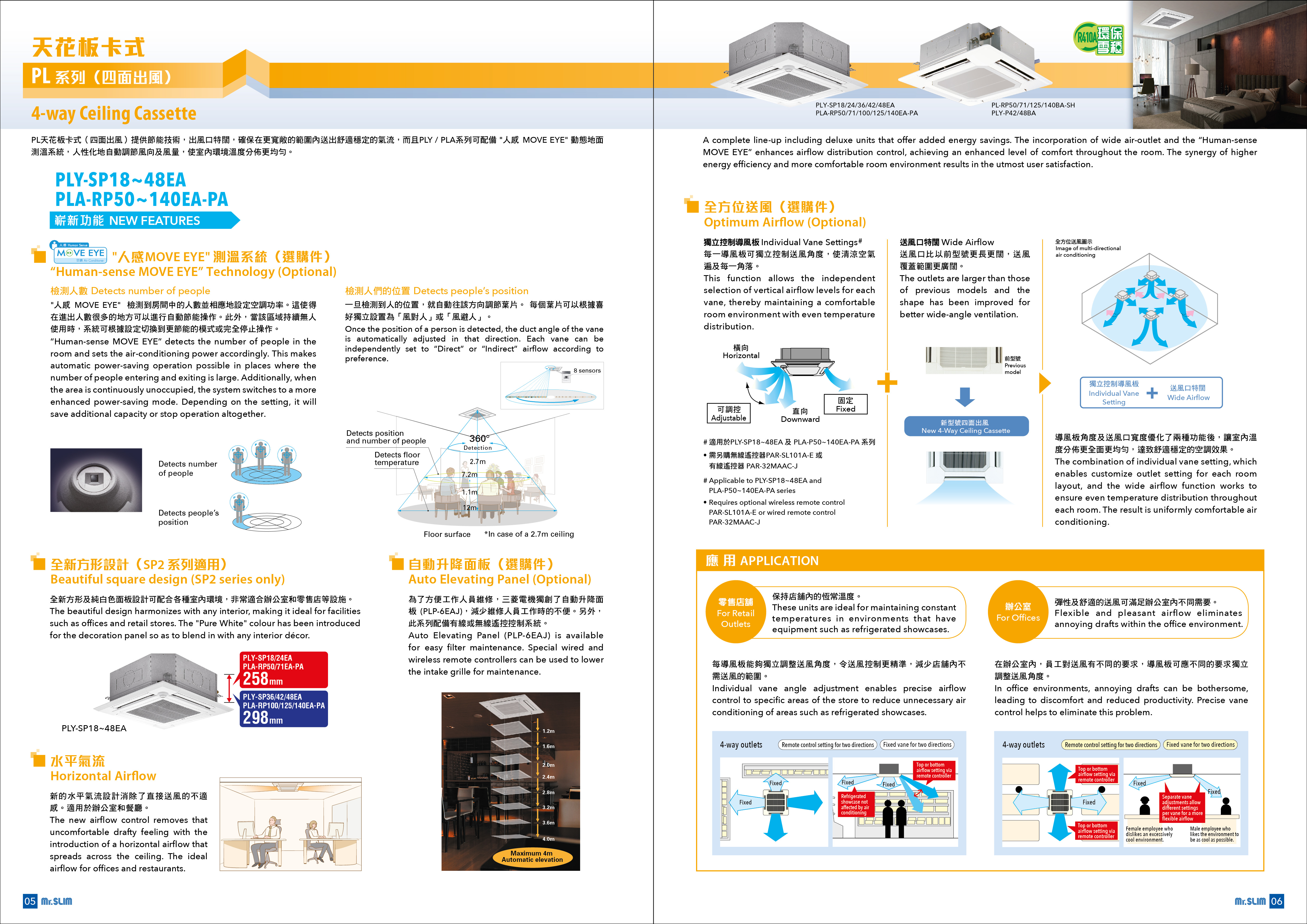

4-way Ceiling Cassette
A complete line-up including deluxe units that offer added energy savings. The incorporation of wide air-outlet and the “MOVE EYE” enhances airflow distribution control, achieving an enhanced level of comfort throughout the room. The synergy of higher energy efficiency and more confortable room enivironment results in the utmost user satisfaction.
Specifications
| Model | Indoor Unit | PLA-RP50EA-PA | PLA-RP71EA-PA | PLA-RP100EA-PA | PLA-RP100EA-PA | PLA-RP125EA-PA | PLA-RP125EA-PA | PLA-RP140EA-PA | PLA-RP140EA-PA | |
| Model | Outdoor Unit | SUZ-KA50VA6 | SUZ-KA71VA6 | PUHZ-P100VKA | PUHZ-P100YKA | PUHZ-P125VKA | PUHZ-P125YKA | PUHZ-P140VKA | PUHZ-P140YKA | |
| Capacity (Rated) | Cooling | kW | 5.5 | 7.1 | 9.4 | 9.4 | 12.1 | 12.1 | 13.6 | 13.6 |
| Capacity (Rated) | Heating | kW | 5.8 | 8 | 11.2 | 11.2 | 13.5 | 13.5 | 15 | 15 |
| Capacity (Min - Max) | Cooling | kW | 2.5-5.6 | 2.8-8.1 | 3.7-10.6 | 3.7-10.6 | 5.6-13.0 | 5.6-13.0 | 5.8-14.1 | 5.8-14.1 |
| Capacity (Min - Max) | Heating | kW | 1.7-7.2 | 2.6-10.2 | 2.8-12.5 | 2.8-12.5 | 4.8-15.0 | 4.8-15.0 | 4.9-15.8 | 4.9-15.8 |
| Power Input | Cooling | kW | 1.61 | 2.1 | 3.18 | 3.18 | 4.1 | 4.1 | 5.41 | 5.41 |
| Power Input | Heating | kW | 1.69 | 2.24 | 3.26 | 3.26 | 3.84 | 3.84 | 4.67 | 4.67 |
| COP Rating | Cooling | kW/kW | 3.41 | 3.38 | 2.95 | 2.95 | 2.95 | 2.95 | 2.51 | 2.51 |
| COP Rating | Heating | kW/kW | 3.43 | 3.57 | 3.43 | 3.43 | 3.51 | 3.51 | 3.21 | 3.21 |
| Dimension (HxWxD) | Indoor Unit | mm | 258x840x840 | 258x840x840 | 298x840x840 | 298x840x840 | 298x840x840 | 298x840x840 | 298x840x840 | 298x840x840 |
| Dimension (HxWxD) | Panel | mm | 40x950x950 | 40x950x950 | 40x950x950 | 40x950x950 | 40x950x950 | 40x950x950 | 40x950x950 | 40x950x950 |
| Dimension (HxWxD) | Outdoor Unit | mm | 880x840x330 | 880x840x330 | 981x1050x330 | 981x1050x330 | 981x1050x330 | 981x1050x330 | 981x1050x330 | 981x1050x330 |
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50, 380/3/50 | 220/1/50 | 220/1/50, 380/3/50 | 220/1/50 | 220/1/50, 380/3/50 | |
| Running Current | Cooling | A | 6.75 | 9.24 | 14.46 | 5.46 | 18.66 | 7.16 | 24.16 | 9.66 |
| Running Current | Heating | A | 6.98 | 9.31 | 14.44 | 5.44 | 18.14 | 7.14 | 21.14 | 8.14 |
| External Static Pressure | Pa | |||||||||
| Max. Piping | Length/Height | m | 30/30 | 30/30 | 50/30 | 50/30 | 50/30 | 50/30 | 50/30 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.7/6.35 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | 14-16-17-18 | 16-17-19-21 | 19-23-26-29 | 19-23-26-29 | 21-25-28-31 | 21-25-28-31 | 24-26-29-32 | 24-26-29-32 |
| Indoor Noise Level | (Lo-Hi) | dB(A) | 27-29-31-32 | 28-30-32-34 | 31-34-37-40 | 31-34-37-40 | 32-37-41-44 | 32-37-41-44 | 36-39-42-44 | 36-39-42-44 |
| Weight | Indoor Unit | kg | 19 | 21 | 24 | 24 | 27 | 27 | 27 | 27 |
| Weight | Panel | kg | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Weight | Outdoor Unit | kg | 54 | 53 | 76 | 78 | 84 | 85 | 84 | 84 |
| Standard Parts | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | ||
| Optional Parts | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | ||
|
|
|
|
|
|
|
|
|
| Model | Indoor Unit | PLA-RP50EA-PA | PLA-RP71EA-PA | PLA-RP100EA-PA | |
| Model | Outdoor Unit | SUZ-KA50VA6 | SUZ-KA71VA6 | PUHZ-P100VKA | |
| Capacity (Rated) | Cooling | kW | 5.5 | 7.1 | 9.4 |
| Capacity (Rated) | Heating | kW | 5.8 | 8 | 11.2 |
| Capacity (Min - Max) | Cooling | kW | 2.5-5.6 | 2.8-8.1 | 3.7-10.6 |
| Capacity (Min - Max) | Heating | kW | 1.7-7.2 | 2.6-10.2 | 2.8-12.5 |
| Power Input | Cooling | kW | 1.61 | 2.1 | 3.18 |
| Power Input | Heating | kW | 1.69 | 2.24 | 3.26 |
| COP Rating | Cooling | kW/kW | 3.41 | 3.38 | 2.95 |
| COP Rating | Heating | kW/kW | 3.43 | 3.57 | 3.43 |
| Dimension (HxWxD) | Indoor Unit | mm | 258x840x840 | 258x840x840 | 298x840x840 |
| Dimension (HxWxD) | Panel | mm | 40x950x950 | 40x950x950 | 40x950x950 |
| Dimension (HxWxD) | Outdoor Unit | mm | 880x840x330 | 880x840x330 | 981x1050x330 |
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | |
| Running Current | Cooling | A | 6.75 | 9.24 | 14.46 |
| Running Current | Heating | A | 6.98 | 9.31 | 14.44 |
| External Static Pressure | Pa | ||||
| Max. Piping | Length/Height | m | 30/30 | 30/30 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.7/6.35 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | 14-16-17-18 | 16-17-19-21 | 19-23-26-29 |
| Indoor Noise Level | (Lo-Hi) | dB(A) | 27-29-31-32 | 28-30-32-34 | 31-34-37-40 |
| Weight | Indoor Unit | kg | 19 | 21 | 24 |
| Weight | Panel | kg | 5 | 5 | 5 |
| Weight | Outdoor Unit | kg | 54 | 53 | 76 |
| Standard Parts | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | ||
| Optional Parts | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E |
| Model | Indoor Unit | PLA-RP100EA-PA | PLA-RP125EA-PA | PLA-RP125EA-PA | |
| Model | Outdoor Unit | PUHZ-P100YKA | PUHZ-P125VKA | PUHZ-P125YKA | |
| Capacity (Rated) | Cooling | kW | 9.4 | 12.1 | 12.1 |
| Capacity (Rated) | Heating | kW | 11.2 | 13.5 | 13.5 |
| Capacity (Min - Max) | Cooling | kW | 3.7-10.6 | 5.6-13.0 | 5.6-13.0 |
| Capacity (Min - Max) | Heating | kW | 2.8-12.5 | 4.8-15.0 | 4.8-15.0 |
| Power Input | Cooling | kW | 3.18 | 4.1 | 4.1 |
| Power Input | Heating | kW | 3.26 | 3.84 | 3.84 |
| COP Rating | Cooling | kW/kW | 2.95 | 2.95 | 2.95 |
| COP Rating | Heating | kW/kW | 3.43 | 3.51 | 3.51 |
| Dimension (HxWxD) | Indoor Unit | mm | 298x840x840 | 298x840x840 | 298x840x840 |
| Dimension (HxWxD) | Panel | mm | 40x950x950 | 40x950x950 | 40x950x950 |
| Dimension (HxWxD) | Outdoor Unit | mm | 981x1050x330 | 981x1050x330 | 981x1050x330 |
| Power Supply | V/Ph/Hz | 220/1/50, 380/3/50 | 220/1/50 | 220/1/50, 380/3/50 | |
| Running Current | Cooling | A | 5.46 | 18.66 | 7.16 |
| Running Current | Heating | A | 5.44 | 18.14 | 7.14 |
| External Static Pressure | Pa | ||||
| Max. Piping | Length/Height | m | 50/30 | 50/30 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | 19-23-26-29 | 21-25-28-31 | 21-25-28-31 |
| Indoor Noise Level | (Lo-Hi) | dB(A) | 31-34-37-40 | 32-37-41-44 | 32-37-41-44 |
| Weight | Indoor Unit | kg | 24 | 27 | 27 |
| Weight | Panel | kg | 5 | 5 | 5 |
| Weight | Outdoor Unit | kg | 78 | 84 | 85 |
| Standard Parts | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | ||
| Optional Parts | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E |
| Model | Indoor Unit | PLA-RP140EA-PA | PLA-RP140EA-PA | |
| Model | Outdoor Unit | PUHZ-P140VKA | PUHZ-P140YKA | |
| Capacity (Rated) | Cooling | kW | 13.6 | 13.6 |
| Capacity (Rated) | Heating | kW | 15 | 15 |
| Capacity (Min - Max) | Cooling | kW | 5.8-14.1 | 5.8-14.1 |
| Capacity (Min - Max) | Heating | kW | 4.9-15.8 | 4.9-15.8 |
| Power Input | Cooling | kW | 5.41 | 5.41 |
| Power Input | Heating | kW | 4.67 | 4.67 |
| COP Rating | Cooling | kW/kW | 2.51 | 2.51 |
| COP Rating | Heating | kW/kW | 3.21 | 3.21 |
| Dimension (HxWxD) | Indoor Unit | mm | 298x840x840 | 298x840x840 |
| Dimension (HxWxD) | Panel | mm | 40x950x950 | 40x950x950 |
| Dimension (HxWxD) | Outdoor Unit | mm | 981x1050x330 | 981x1050x330 |
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50, 380/3/50 | |
| Running Current | Cooling | A | 24.16 | 9.66 |
| Running Current | Heating | A | 21.14 | 8.14 |
| External Static Pressure | Pa | |||
| Max. Piping | Length/Height | m | 50/30 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | 24-26-29-32 | 24-26-29-32 |
| Indoor Noise Level | (Lo-Hi) | dB(A) | 36-39-42-44 | 36-39-42-44 |
| Weight | Indoor Unit | kg | 27 | 27 |
| Weight | Panel | kg | 5 | 5 |
| Weight | Outdoor Unit | kg | 84 | 84 |
| Standard Parts | Panel with Wireless Remote Controller PAR-6EALCM | Panel with Wireless Remote Controller PAR-6EALCM | ||
| Optional Parts | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E | Panel with Wired Remote Controller PAR-21MAA; Auto Elevating Panel and Wireless Remote Controller PLP-6EAJ + PAR-SL101A-E, MOVE EYE PAC-SE1ME-E |
Remarks
1.Please refer to the product catalogue for details.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
