PE(Metal Blower Type)
Fixed-Speed Cooling Only Ceiling Concealed (Metal Blower) Type
Share on
Recently Viewed
AAA
- Feature
- Specifications
- Others
Feature
More

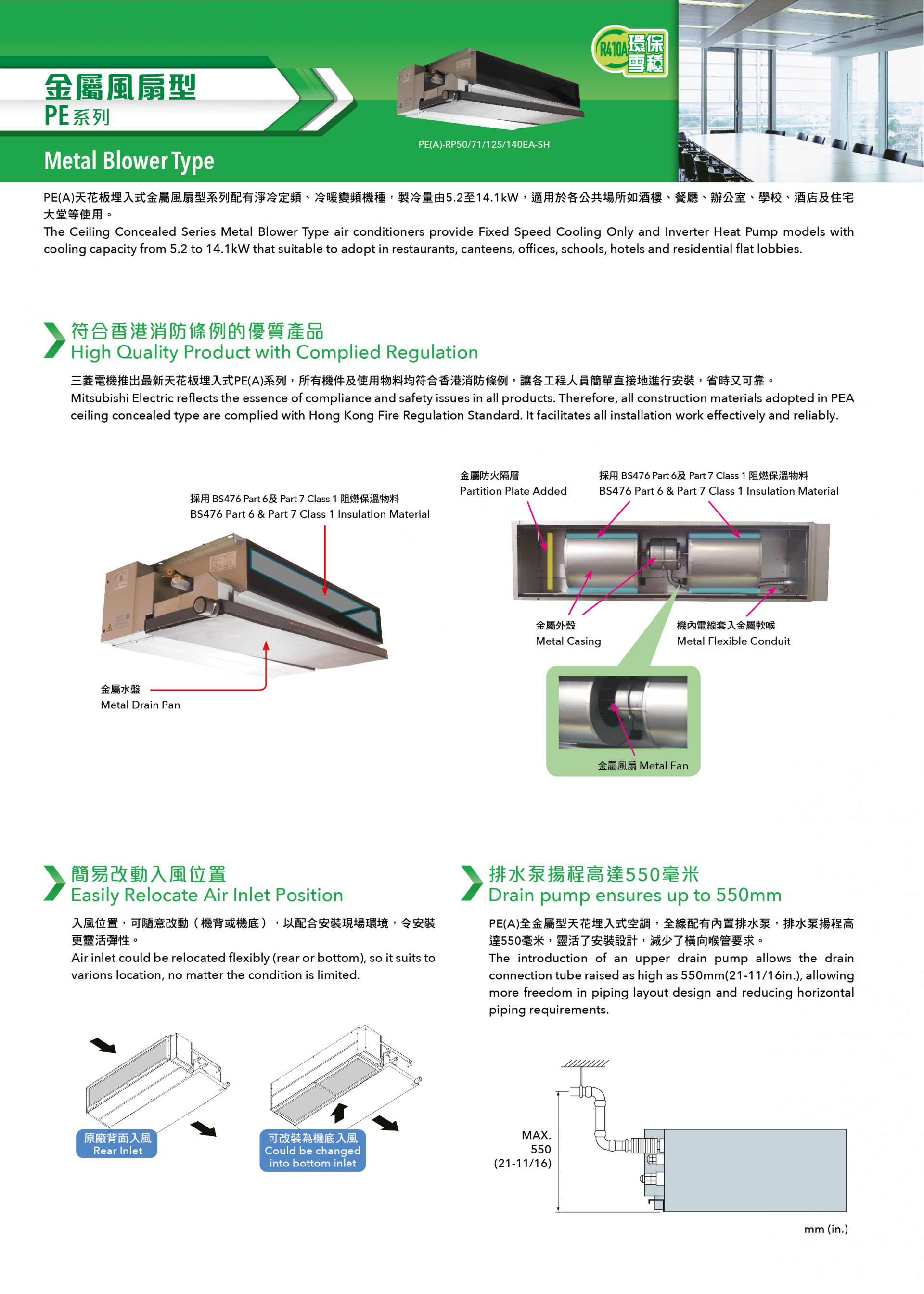

Metal Blower Type
Less
The Ceiling Concealed Series Metal Blower Type air conditioners provide Fixed Speed Cooling Only and Inverter Heat Pump models with cooling capacity from 5.2 to 14.1kW that suitable to adopt in restaurants, canteens, offices, schools, hotels and residential flat lobbies.
Specifications
| Model | Indoor Unit | PE-RP50EA-SH | PE-RP71EA-SH | PE-RP125EA-SH | PE-RP140EA-SH | |||||||
| Outdoor Unit | PU-P50VEA-SH | PU-P71VEA-SH | PU-P125YHA-SH | PU-P140YHA-SH | ||||||||
| Capacity (Rated) | Cooling | kW | 5.2 | 7.7 | 12.5 | 14.1 | ||||||
| Power Input | Cooling | kW | 1.96 | 2.93 | 4.62 | 5.08 | ||||||
| Dimension (HxWxD) | Indoor Unit | mm | 295x935x700 | 295x1175x700 | 325 x 1415 x 740 | 325 x 1415 x 740 | ||||||
| Outdoor Unit | 850x870x319 | 850x870x319 | 1,350x950x330 | 1,350x950x330 | ||||||||
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 380/3/50 | 380/3/50 | |||||||
| External Static Pressure | Pa | 50(90) | 50(90) | 50(90) | 50(90) | |||||||
| Max. Piping | Length/Height | m | 40/40 | 50/50 | 50/50 | 50/50 | ||||||
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.7/6.35 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | ||||||
| Weight | Indoor Unit | kg | 35 | 42 | 66 | 66 | ||||||
| Outdoor Unit | 61 | 68 | 128 | 128 | ||||||||
|
|
|
|
|
|
|
|
|
|
|
| Model | Indoor Unit | PE-RP50EA-SH | PE-RP71EA-SH | PE-RP125EA-SH | |
| Model | Outdoor Unit | PU-P50VEA-SH | PU-P71VEA-SH | PU-P125YHA-SH | |
| Capacity (Rated) | Cooling | kW | 5.2 | 7.7 | 12.5 |
| Capacity (Rated) | Heating | kW | |||
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | 1.96 | 2.93 | 4.62 |
| Power Input | Heating | kW | |||
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | 295x935x700 | 295x1175x700 | 325 x 1415 x 740 |
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | 850x870x319 | 850x870x319 | 1,350x950x330 |
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 380/3/50 | |
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | 50(90) | 50(90) | 50(90) | |
| Max. Piping | Length/Height | m | 40/40 | 50/50 | 50/50 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.7/6.35 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | 35 | 42 | 66 |
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | 61 | 68 | 128 |
| Standard Parts | |||||
| Optional Parts |
| Model | Indoor Unit | PE-RP140EA-SH | |||
| Model | Outdoor Unit | PU-P140YHA-SH | |||
| Capacity (Rated) | Cooling | kW | 14.1 | ||
| Capacity (Rated) | Heating | kW | |||
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | 5.08 | ||
| Power Input | Heating | kW | |||
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | 325 x 1415 x 740 | ||
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | 1,350x950x330 | ||
| Power Supply | V/Ph/Hz | 380/3/50 | |||
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | 50(90) | |||
| Max. Piping | Length/Height | m | 50/50 | ||
| Piping Diameter | Gas/Liquid(Ø) | mm | 15.88/9.52 | ||
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | 66 | ||
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | 128 | ||
| Standard Parts | |||||
| Optional Parts |
| Model | Indoor Unit | ||||
| Model | Outdoor Unit | ||||
| Capacity (Rated) | Cooling | kW | |||
| Capacity (Rated) | Heating | kW | |||
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | |||
| Power Input | Heating | kW | |||
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | |||
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | |||
| Power Supply | V/Ph/Hz | ||||
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | ||||
| Max. Piping | Length/Height | m | |||
| Piping Diameter | Gas/Liquid(Ø) | mm | |||
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | |||
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | |||
| Standard Parts | |||||
| Optional Parts |
| Model | Indoor Unit | ||
| Model | Outdoor Unit | ||
| Capacity (Rated) | Cooling | kW | |
| Capacity (Rated) | Heating | kW | |
| Capacity (Min - Max) | Cooling | kW | |
| Capacity (Min - Max) | Heating | kW | |
| Power Input | Cooling | kW | |
| Power Input | Heating | kW | |
| COP Rating | Cooling | kW/kW | |
| COP Rating | Heating | kW/kW | |
| Dimension (HxWxD) | Indoor Unit | mm | |
| Dimension (HxWxD) | Panel | mm | |
| Dimension (HxWxD) | Outdoor Unit | mm | |
| Power Supply | V/Ph/Hz | ||
| Running Current | Cooling | A | |
| Running Current | Heating | A | |
| External Static Pressure | Pa | ||
| Max. Piping | Length/Height | m | |
| Piping Diameter | Gas/Liquid(Ø) | mm | |
| Air Volume | (Lo-Hi) | m³/min | |
| Indoor Noise Level | (Lo-Hi) | dB(A) | |
| Weight | Indoor Unit | kg | |
| Weight | Panel | kg | |
| Weight | Outdoor Unit | kg | |
| Standard Parts | |||
| Optional Parts |
Remarks
1.Please refer to the product catalogue for details.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
