PEY(Standard Type)
Inverter Cooling Only Ceiling Concealed Type
Share on
Recently Viewed
Feature
More
Standard Type
Less

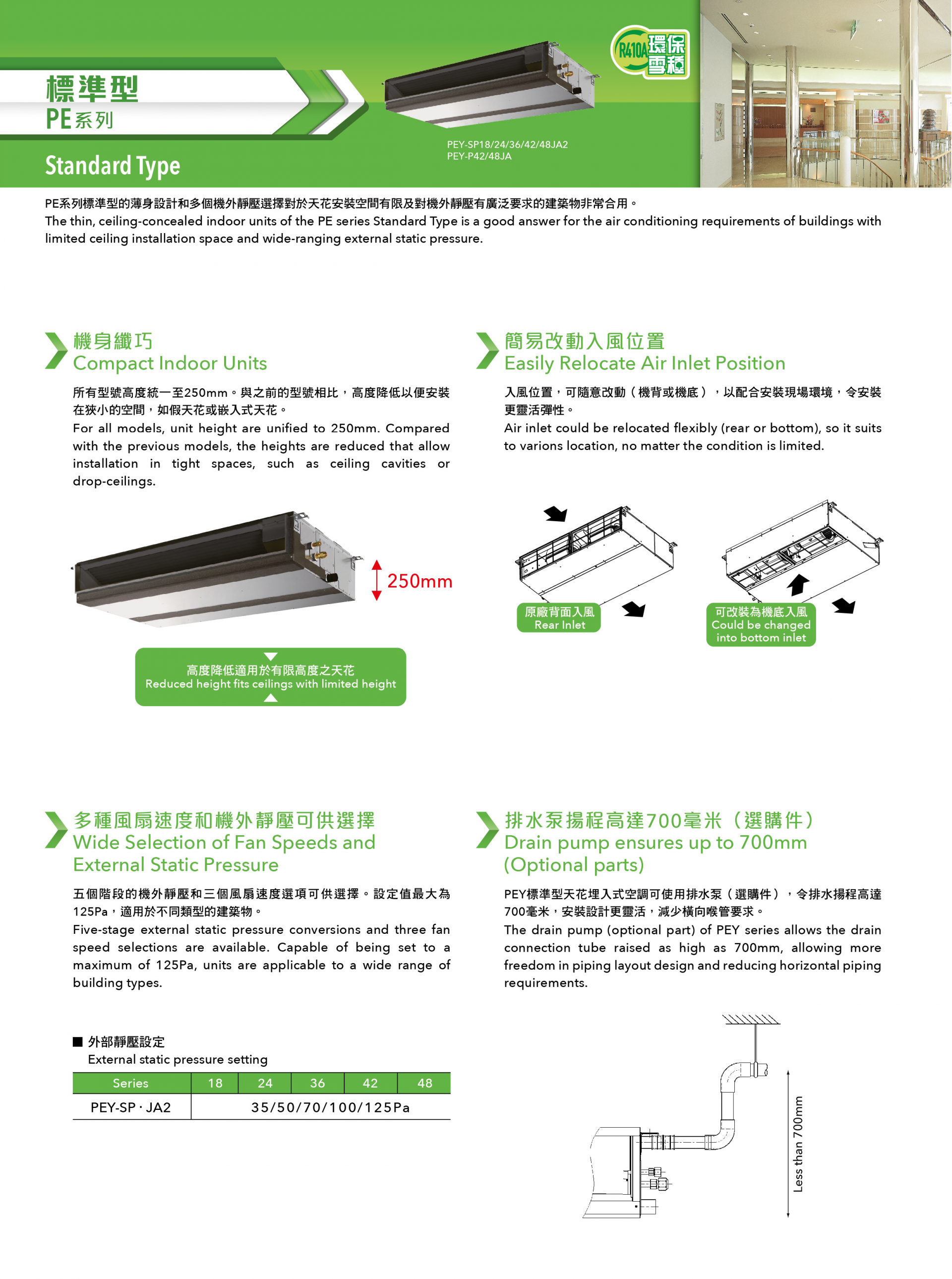

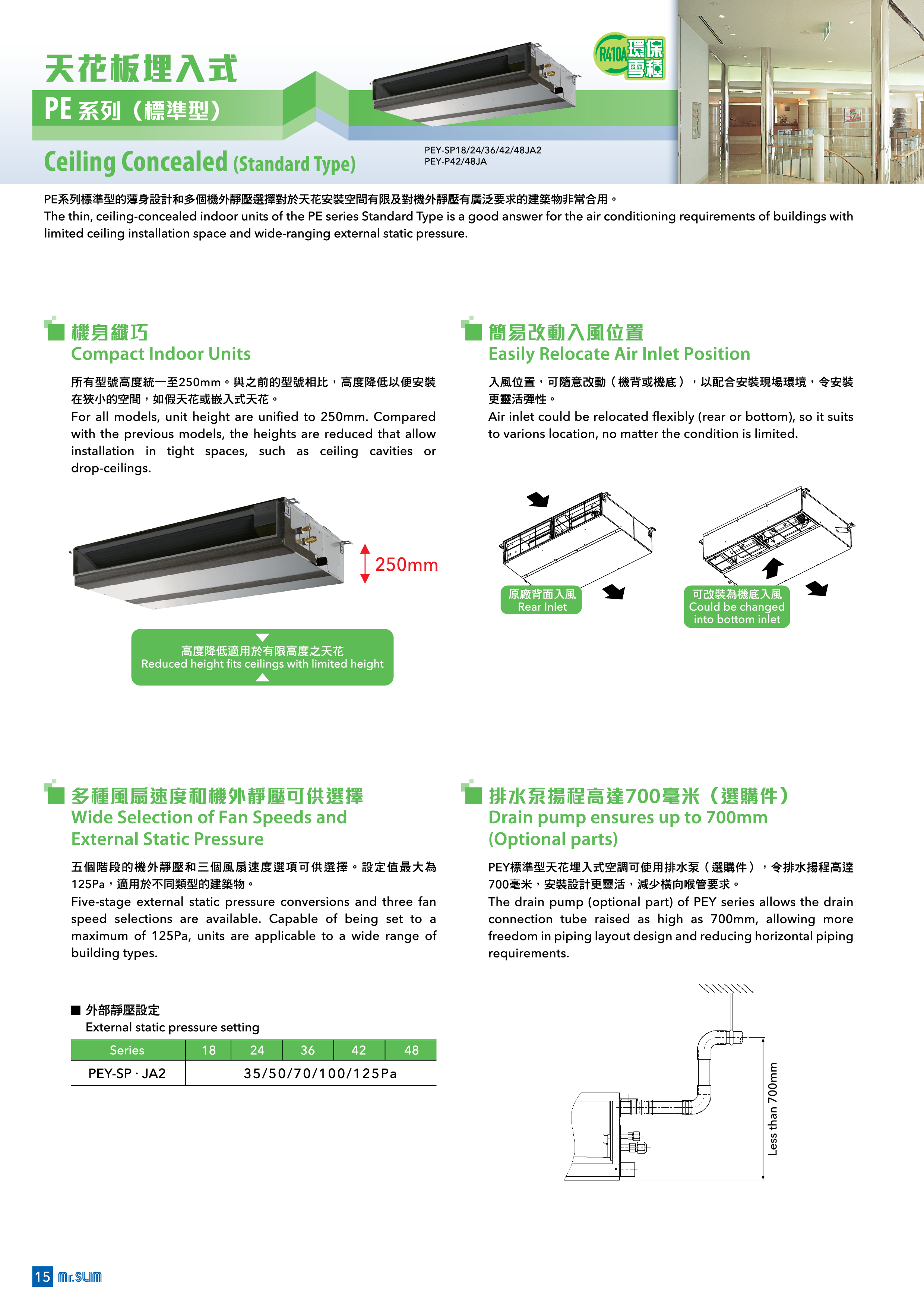

The thin, ceiling-concealed indoor units of the PE series Standard Type is an excellent answer for the air conditioning requirements of buildings with limited ceiling installation space and wide-ranging external static pressure.
Specifications
| Model | Indoor Unit | PEY-SP18JA2 | PEY-SP24JA2 | PEY-SP36JA2 | PEY-SP36JA2 | PEY-SP42JA2 | PEY-SP48JA2 | PEY-P42JA2 | PEY-P48JA2 | |
| Model | Outdoor Unit | SUY-SA18VA2 | SUY-SA24VA2 | PUY-SA36VA2 | PUY-SP36YKA2 | PUY-SP42YKA2 | PUY-SP48YKA2 | PUY-P42YKA2 | PUY-P48YKA2 | |
| Capacity (Rated) | Cooling | kW | 5.3 | 7.1 | 10.6 | 10.6 | 12.3 | 14.1 | 12.3 | 13.5 |
| Capacity (Rated) | Heating | kW | ||||||||
| Capacity (Min - Max) | Cooling | kW | ||||||||
| Capacity (Min - Max) | Heating | kW | ||||||||
| Power Input | Cooling | kW | 1.72 | 2.16 | 3.65 | 3.65 | 4.59 | 5.73 | 3.84 | 4.41 |
| Power Input | Heating | kW | ||||||||
| COP Rating | Cooling | kW/kW | ||||||||
| COP Rating | Heating | kW/kW | ||||||||
| Dimension (HxWxD) | Indoor Unit | mm | 250x900x732 | 250x1,100x732 | 250x1,400x732 | 250x1,400x732 | 250x1,400x732 | 250x1,400x732 | 250x1,400x732 | 250x1,400x732 |
| Dimension (HxWxD) | Panel | mm | ||||||||
| Dimension (HxWxD) | Outdoor Unit | mm | 550x800x285 | 880x840x330 | 981x1050x330 | 981x1,050x330 | 981x1,050x330 | 981x1,050x330 | 1,338x1,050x330 | 1,338x1,050x330 |
| Power Supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | |
| Running Current | Cooling | A | ||||||||
| Running Current | Heating | A | ||||||||
| External Static Pressure | Pa | 35-50-70-100-125 | 35-50-70-100-125 | 35-50-70-100-125 | 35-50-70-100-125 | 35-50-70-100-125 | 35-50-70-100-125 | 35-50-70-100-125 | 35-50-70-100-125 | |
| Max. Piping | Length/Height | m | 20/12 | 30/15 | 50/30 | 50/30 | 50/30 | 50/30 | 50/30 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.7/6.35 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | ||||||||
| Indoor Noise Level | (Lo-Hi) | dB(A) | ||||||||
| Weight | Indoor Unit | kg | 27 | 29 | 39 | 39 | 39 | 39 | 39 | 39 |
| Weight | Panel | kg | ||||||||
| Weight | Outdoor Unit | kg | 32 | 49 | 64 | 65 | 73 | 73 | 96 | 96 |
| Standard Parts | ||||||||||
| Optional Parts | ||||||||||
|
|
|
|
|
|
|
|
|
| Model | Indoor Unit | PEY-SP18JA2 | PEY-SP24JA2 | PEY-SP36JA2 | |
| Model | Outdoor Unit | SUY-SA18VA2 | SUY-SA24VA2 | PUY-SA36VA2 | |
| Capacity (Rated) | Cooling | kW | 5.3 | 7.1 | 10.6 |
| Capacity (Rated) | Heating | kW | |||
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | 1.72 | 2.16 | 3.65 |
| Power Input | Heating | kW | |||
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | 250x900x732 | 250x1,100x732 | 250x1,400x732 |
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | 550x800x285 | 880x840x330 | 981x1050x330 |
| Power Supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | |
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | 35-50-70-100-125 | 35-50-70-100-125 | 35-50-70-100-125 | |
| Max. Piping | Length/Height | m | 20/12 | 30/15 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.7/6.35 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | 27 | 29 | 39 |
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | 32 | 49 | 64 |
| Standard Parts | |||||
| Optional Parts |
| Model | Indoor Unit | PEY-SP36JA2 | PEY-SP42JA2 | PEY-SP48JA2 | |
| Model | Outdoor Unit | PUY-SP36YKA2 | PUY-SP42YKA2 | PUY-SP48YKA2 | |
| Capacity (Rated) | Cooling | kW | 10.6 | 12.3 | 14.1 |
| Capacity (Rated) | Heating | kW | |||
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | 3.65 | 4.59 | 5.73 |
| Power Input | Heating | kW | |||
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | 250x1,400x732 | 250x1,400x732 | 250x1,400x732 |
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | 981x1,050x330 | 981x1,050x330 | 981x1,050x330 |
| Power Supply | V/Ph/Hz | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | |
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | 35-50-70-100-125 | 35-50-70-100-125 | 35-50-70-100-125 | |
| Max. Piping | Length/Height | m | 50/30 | 50/30 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | 39 | 39 | 39 |
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | 65 | 73 | 73 |
| Standard Parts | |||||
| Optional Parts |
| Model | Indoor Unit | PEY-P42JA2 | PEY-P48JA2 | |
| Model | Outdoor Unit | PUY-P42YKA2 | PUY-P48YKA2 | |
| Capacity (Rated) | Cooling | kW | 12.3 | 13.5 |
| Capacity (Rated) | Heating | kW | ||
| Capacity (Min - Max) | Cooling | kW | ||
| Capacity (Min - Max) | Heating | kW | ||
| Power Input | Cooling | kW | 3.84 | 4.41 |
| Power Input | Heating | kW | ||
| COP Rating | Cooling | kW/kW | ||
| COP Rating | Heating | kW/kW | ||
| Dimension (HxWxD) | Indoor Unit | mm | 250x1,400x732 | 250x1,400x732 |
| Dimension (HxWxD) | Panel | mm | ||
| Dimension (HxWxD) | Outdoor Unit | mm | 1,338x1,050x330 | 1,338x1,050x330 |
| Power Supply | V/Ph/Hz | 380-415/3/50 | 380-415/3/50 | |
| Running Current | Cooling | A | ||
| Running Current | Heating | A | ||
| External Static Pressure | Pa | 35-50-70-100-125 | 35-50-70-100-125 | |
| Max. Piping | Length/Height | m | 50/30 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | ||
| Indoor Noise Level | (Lo-Hi) | dB(A) | ||
| Weight | Indoor Unit | kg | 39 | 39 |
| Weight | Panel | kg | ||
| Weight | Outdoor Unit | kg | 96 | 96 |
| Standard Parts | ||||
| Optional Parts |
Remarks
1.Please refer to the product catalogue for details.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
