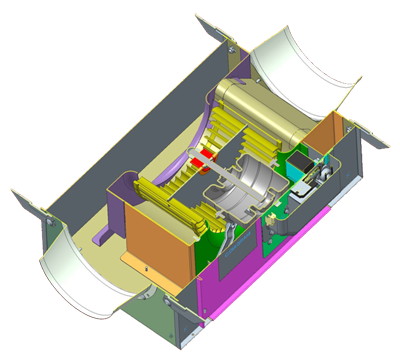

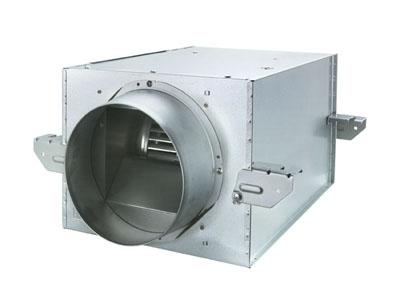

Casing and impeller are manufactured in galvanized sheet. The terminal box is covered with metal cover for enhancing the safety and the noise absorption material is complied with BS476 part 6 and 7
Designed with a height less than 260mm which is suitable for narrow ceiling space.
The impeller and motor are easily to be accessed by removing the maintenance cover.
All models are designed with two speed switching operaton.

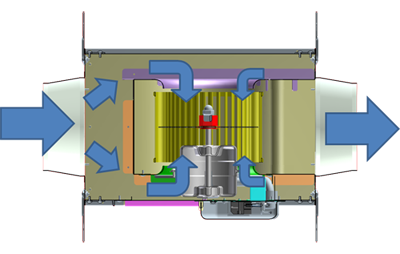

The operating noise has been minimized by creating homogeneous air flow with causing air to flow from two direction and using sound absorption material.
Model | V-15ZMW-E | V-15ZMWP-E | V-18ZMW-E | V-18ZMWP-E | |
Air Volume | m3/h | 210/145 | 335/275 | 510/370 | 770/650 |
External Static Pressure | Pa | 0 | 0 | 0 | 0 |
Noise | dB | 21.5/17 | 26.5/23 | 31/26 | 32.5/30 |
Dimension (Hx Wx D) | mm | 226x339x340 | 226x339x340 | 255x371x394 | 255x435x436 |
Blade size | mm | 150 | 150 | 180 | 180 |
Duct size | mm | 100 | 150 | 150 | 200 |
Weight | kg | 6 | 6 | 8.5 | 9.5 |
Power consumption | W | 25/16 | 43/29 | 60/34 | 99/78 |
Power Input | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 |
|
|
|
|
Model | V-15ZMW-E | V-15ZMWP-E | V-18ZMW-E | |
Air Volume | m3/h | 210/145 | 335/275 | 510/370 |
External Static Pressure | Pa | 0 | 0 | 0 |
Noise | dB | 21.5/17 | 26.5/23 | 31/26 |
Dimension (Hx Wx D) | mm | 226x339x340 | 226x339x340 | 255x371x394 |
Blade size | mm | 150 | 150 | 180 |
Duct size | mm | 100 | 150 | 150 |
Weight | kg | 6 | 6 | 8.5 |
Power consumption | W | 25/16 | 43/29 | 60/34 |
Power Input | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 |
Model | V-18ZMWP-E | |
Air Volume | m3/h | 770/650 |
External Static Pressure | Pa | 0 |
Noise | dB | 32.5/30 |
Dimension (Hx Wx D) | mm | 255x435x436 |
Blade size | mm | 180 |
Duct size | mm | 200 |
Weight | kg | 9.5 |
Power consumption | W | 99/78 |
Power Input | V/Ph/Hz | 220/1/50 |
