PEY (Metal Blower)
Inverter Cooling Only Ceiling Concealed (Metal Blower) Type
Share on
Recently Viewed
Feature
More

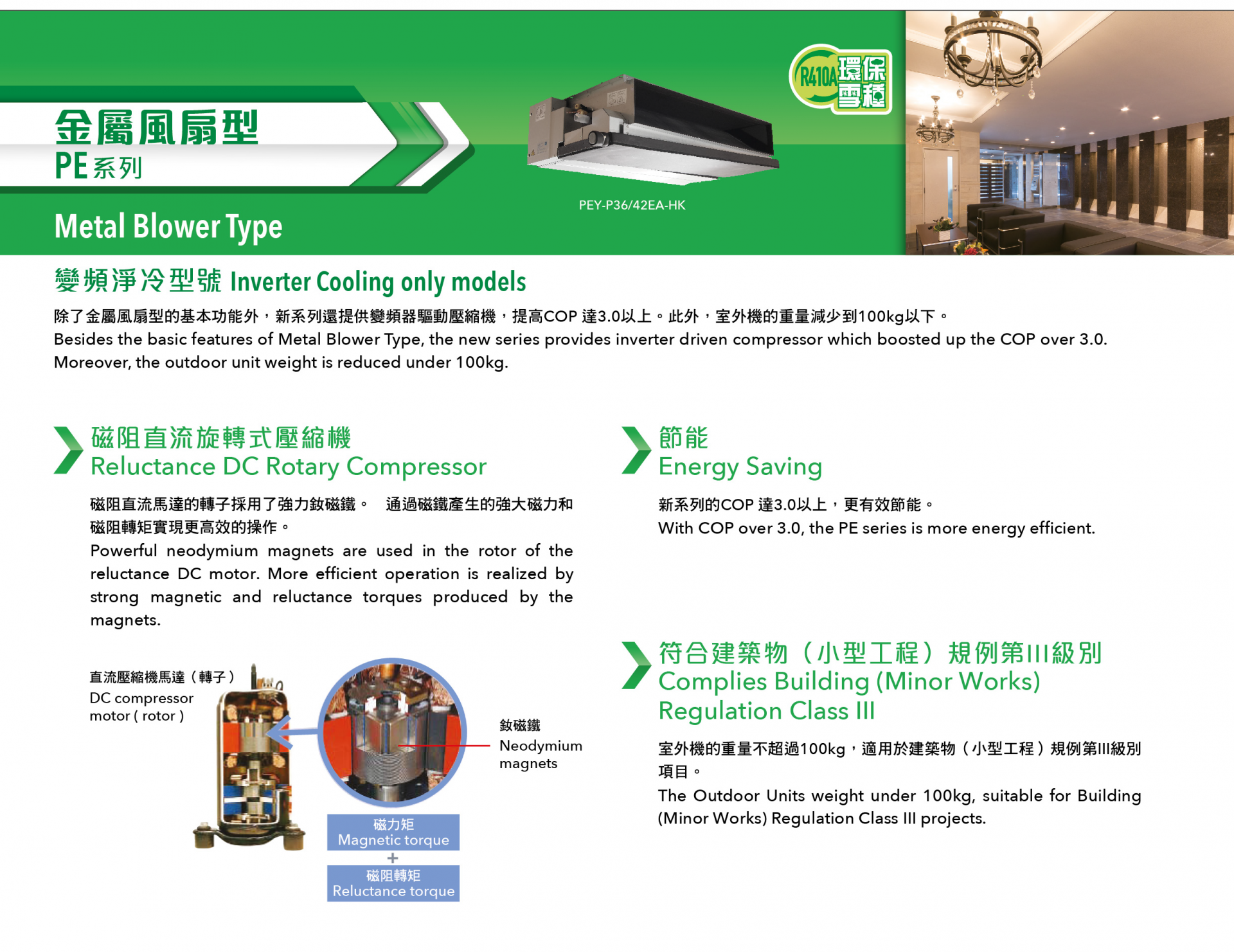

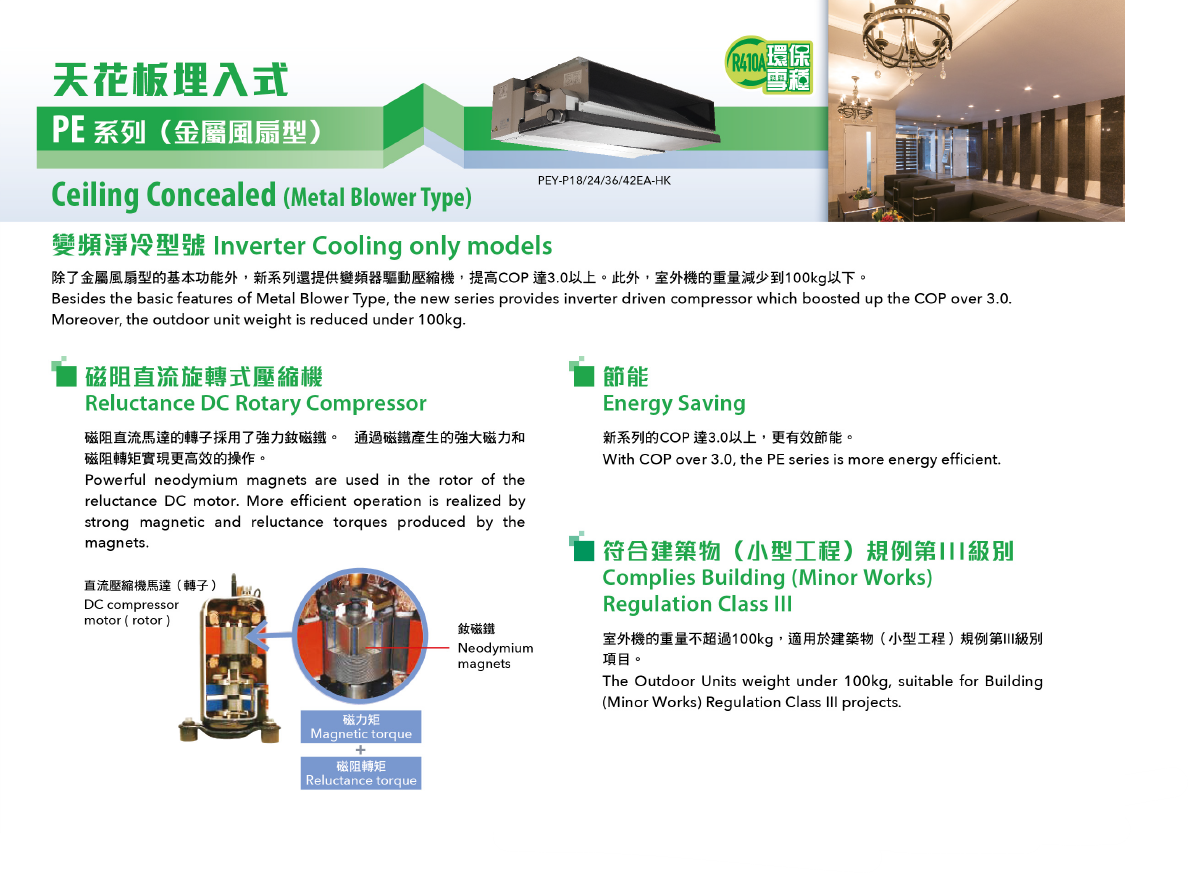

Metal Blower Type (New inverter Cooling only models)
Besides the basic features of Metal Blower Type, the new series provides inverter driven compressor which boosted up the COP over 3.0. Moreover, the outdoor unit weight is reduced under 100 kg.
Specifications
| Model | Indoor Unit | PEY-P18EA-HK | PEY-P24EA-HK | PEY-P36EA-HK | PEY-P42EA-HK | |
| Model | Outdoor Unit | SUY-SA18VA2-HK | SUY-SA24VA2-HK | SUY-KA36VA | PUY-P42YKA | |
| Capacity (Rated) | Cooling | kW | 4.3 | 7.1 | 9.8 | 11.7 |
| Capacity (Rated) | Heating | kW | ||||
| Capacity (Min - Max) | Cooling | kW | ||||
| Capacity (Min - Max) | Heating | kW | ||||
| Power Input | Cooling | kW | 1.45 | 2.24 | 3.17 | 3.79 |
| Power Input | Heating | kW | ||||
| COP Rating | Cooling | kW/kW | 2.97 | 3.17 | 3.09 | 3.09 |
| COP Rating | Heating | kW/kW | ||||
| Dimension (HxWxD) | Indoor Unit | mm | 295x935x700 | 295x1175x700 | 325x1415x740 | 325x1415x740 |
| Dimension (HxWxD) | Panel | mm | ||||
| Dimension (HxWxD) | Outdoor Unit | mm | 550x800x285 | 880x840x330 | 880x840x330 | 1338x1050x330 |
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 380/3/50 | |
| Running Current | Cooling | A | 6.7 | 10.3 | 14.5 | 7.4 |
| Running Current | Heating | A | ||||
| External Static Pressure | Pa | 50(105) | 50(100) | 50(90) | 50(90) | |
| Max. Piping | Length/Height | m | 46011 | 30/15 | 30/15 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.70/6.35 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | 14.4-19.0 | 15.7-22.5 | 23.0-33.3 | 23.0-33.3 |
| Indoor Noise Level | (Lo-Hi) | dB(A) | 32-36 | 32-37 | 33-38 | 33-38 |
| Weight | Indoor Unit | kg | 35 | 42 | 66 | 66 |
| Weight | Panel | kg | ||||
| Weight | Outdoor Unit | kg | 32 | 49 | 51 | 96 |
| Standard Parts | Drain Pump, Wired remote controller PAR-21MAA | Drain Pump, Wired remote controller PAR-21MAA | Drain Pump, Wired remote controller PAR-21MAA | Drain Pump, Wired remote controller PAR-21MAA | ||
| Optional Parts | Wireless Remote Controller PAR-SL97A-E, Signal Receiver PAR-SA9CA-E | Wireless Remote Controller PAR-SL97A-E, Signal Receiver PAR-SA9CA-E | Wireless Remote Controller PAR-SL97A-E, Signal Receiver PAR-SA9CA-E | Wireless Remote Controller PAR-SL97A-E, Signal Receiver PAR-SA9CA-E | ||
|
|
|
|
|
| Model | Indoor Unit | PEY-P18EA-HK | PEY-P24EA-HK | PEY-P36EA-HK | |
| Model | Outdoor Unit | SUY-SA18VA2-HK | SUY-SA24VA2-HK | SUY-KA36VA | |
| Capacity (Rated) | Cooling | kW | 4.3 | 7.1 | 9.8 |
| Capacity (Rated) | Heating | kW | |||
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | 1.45 | 2.24 | 3.17 |
| Power Input | Heating | kW | |||
| COP Rating | Cooling | kW/kW | 2.97 | 3.17 | 3.09 |
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | 295x935x700 | 295x1175x700 | 325x1415x740 |
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | 550x800x285 | 880x840x330 | 880x840x330 |
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | |
| Running Current | Cooling | A | 6.7 | 10.3 | 14.5 |
| Running Current | Heating | A | |||
| External Static Pressure | Pa | 50(105) | 50(100) | 50(90) | |
| Max. Piping | Length/Height | m | 46011 | 30/15 | 30/15 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.70/6.35 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | 14.4-19.0 | 15.7-22.5 | 23.0-33.3 |
| Indoor Noise Level | (Lo-Hi) | dB(A) | 32-36 | 32-37 | 33-38 |
| Weight | Indoor Unit | kg | 35 | 42 | 66 |
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | 32 | 49 | 51 |
| Standard Parts | Drain Pump, Wired remote controller PAR-21MAA | Drain Pump, Wired remote controller PAR-21MAA | Drain Pump, Wired remote controller PAR-21MAA | ||
| Optional Parts | Wireless Remote Controller PAR-SL97A-E, Signal Receiver PAR-SA9CA-E | Wireless Remote Controller PAR-SL97A-E, Signal Receiver PAR-SA9CA-E | Wireless Remote Controller PAR-SL97A-E, Signal Receiver PAR-SA9CA-E |
| Model | Indoor Unit | PEY-P42EA-HK | |
| Model | Outdoor Unit | PUY-P42YKA | |
| Capacity (Rated) | Cooling | kW | 11.7 |
| Capacity (Rated) | Heating | kW | |
| Capacity (Min - Max) | Cooling | kW | |
| Capacity (Min - Max) | Heating | kW | |
| Power Input | Cooling | kW | 3.79 |
| Power Input | Heating | kW | |
| COP Rating | Cooling | kW/kW | 3.09 |
| COP Rating | Heating | kW/kW | |
| Dimension (HxWxD) | Indoor Unit | mm | 325x1415x740 |
| Dimension (HxWxD) | Panel | mm | |
| Dimension (HxWxD) | Outdoor Unit | mm | 1338x1050x330 |
| Power Supply | V/Ph/Hz | 380/3/50 | |
| Running Current | Cooling | A | 7.4 |
| Running Current | Heating | A | |
| External Static Pressure | Pa | 50(90) | |
| Max. Piping | Length/Height | m | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | 23.0-33.3 |
| Indoor Noise Level | (Lo-Hi) | dB(A) | 33-38 |
| Weight | Indoor Unit | kg | 66 |
| Weight | Panel | kg | |
| Weight | Outdoor Unit | kg | 96 |
| Standard Parts | Drain Pump, Wired remote controller PAR-21MAA | ||
| Optional Parts | Wireless Remote Controller PAR-SL97A-E, Signal Receiver PAR-SA9CA-E |
Remarks
1.Please refer to the product catalogue for details.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
