PEA (High Static)
Inverter Heat Pump Ceiling Concealed (High Static) Type
Share on
Recently Viewed
Feature
More

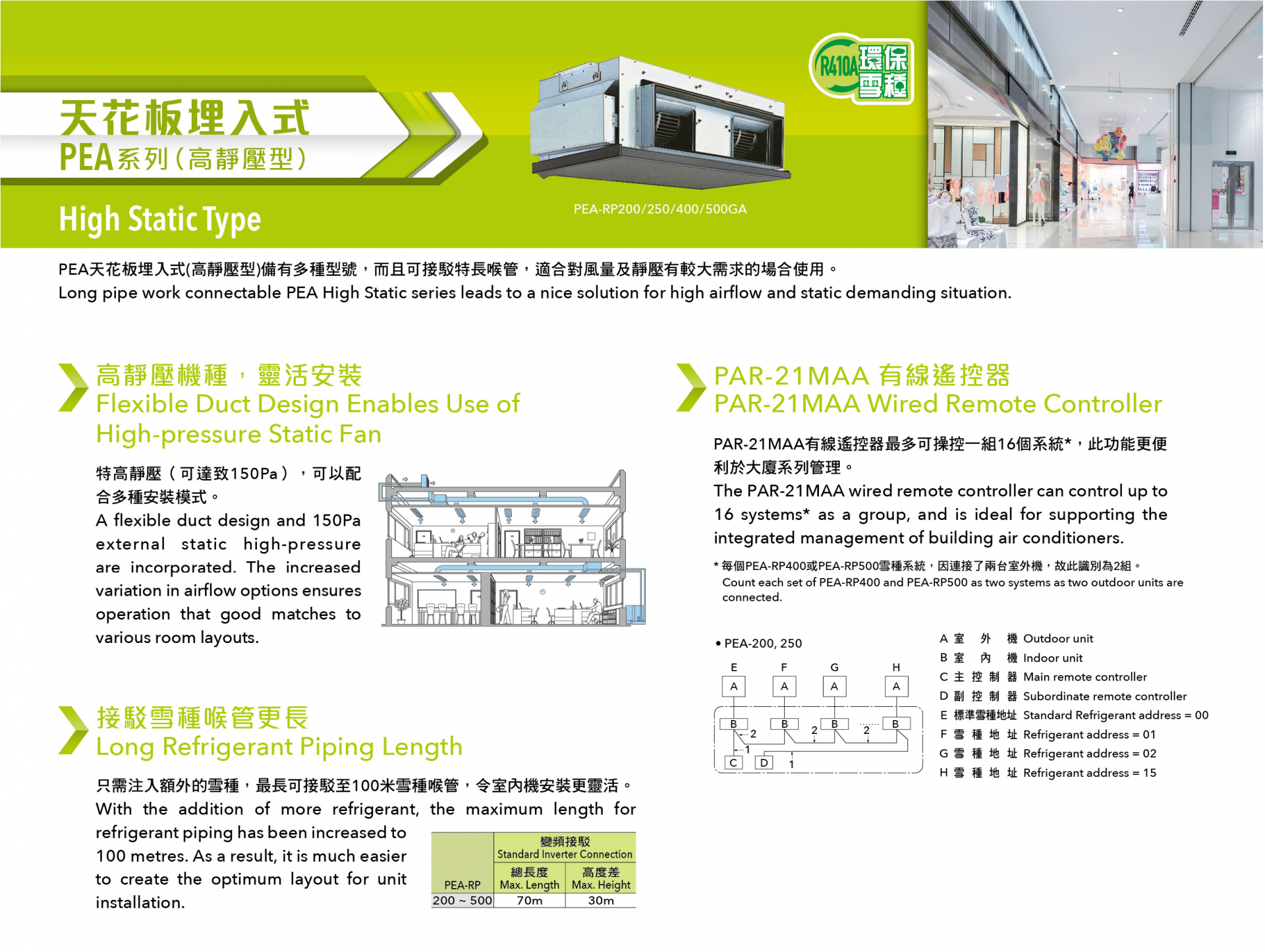

High Static Type
For elegance and style, the PEA High Static series compliments the room environment with an aesthetically pleasing ceiling installation and a vast line-up of performance functions. Long pipe work installation is supported, increasing freedom in the placement of indoor units.
Specifications
| Model | Indoor Unit | PEA-RP200GA | PEA-RP250GA | PEA-RP400GA | PEA-RP500GA | |||||||
| Model | Outdoor Unit | PUHZ-P200YHA3 | PUHZ-P250YHA3 | PUHZ-P200YHA3 x 2 | PUHZ-P250YHA3 x 2 | |||||||
| Capacity (Rated) | Cooling | kW | 19 | 22 | 38 | 44 | ||||||
| Capacity (Rated) | Heating | kW | 22.4 | 27 | 44.8 | 54 | ||||||
| Capacity (Min - Max) | Cooling | kW | ||||||||||
| Capacity (Min - Max) | Heating | kW | ||||||||||
| Power Input | Cooling | kW | 7.21 | 8.44 | 13.97 | 17.36 | ||||||
| Power Input | Heating | kW | 7.36 | 8.47 | 14.33 | 17.42 | ||||||
| COP Rating | Cooling | kW/kW | ||||||||||
| COP Rating | Heating | kW/kW | ||||||||||
| Dimension (HxWxD) | Indoor Unit | mm | 400x1,400x634 | 400x1,600x634 | 595x1,947x764 | 595x1,947x764 | ||||||
| Dimension (HxWxD) | Panel | mm | ||||||||||
| Dimension (HxWxD) | Outdoor Unit | mm | 1,350x950x330 | 1,350x950x330 | (1,350x950x330) x 2 | (1,350x950x330) x 2 | ||||||
| Power Supply | V/Ph/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | |||||||
| Running Current | Cooling | A | ||||||||||
| Running Current | Heating | A | ||||||||||
| External Static Pressure | Pa | 150 | 150 | 150 | 150 | |||||||
| Max. Piping | Length/Height | m | 70/30 | 70/30 | 70/30 | 70/30 | ||||||
| Piping Diameter | Gas/Liquid(Ø) | mm | 25.4/9.52 | 25.4/12.7 | 25.4x2/9.52x2 | 25.4x2/12.7x2 | ||||||
| Air Volume | (Lo-Hi) | m³/min | ||||||||||
| Indoor Noise Level | (Lo-Hi) | dB(A) | ||||||||||
| Weight | Indoor Unit | kg | 70 | 77 | 130 | 133 | ||||||
| Weight | Panel | kg | ||||||||||
| Weight | Outdoor Unit | kg | 126 | 135 | 126x2 | 135x2 | ||||||
| Standard Parts | ||||||||||||
| Optional Parts | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
| Model | Indoor Unit | PEA-RP200GA | PEA-RP250GA | PEA-RP400GA | |
| Model | Outdoor Unit | PUHZ-P200YHA3 | PUHZ-P250YHA3 | PUHZ-P200YHA3 x 2 | |
| Capacity (Rated) | Cooling | kW | 19 | 22 | 38 |
| Capacity (Rated) | Heating | kW | 22.4 | 27 | 44.8 |
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | 7.21 | 8.44 | 13.97 |
| Power Input | Heating | kW | 7.36 | 8.47 | 14.33 |
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | 400x1,400x634 | 400x1,600x634 | 595x1,947x764 |
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | 1,350x950x330 | 1,350x950x330 | (1,350x950x330) x 2 |
| Power Supply | V/Ph/Hz | 380/3/50 | 380/3/50 | 380/3/50 | |
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | 150 | 150 | 150 | |
| Max. Piping | Length/Height | m | 70/30 | 70/30 | 70/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 25.4/9.52 | 25.4/12.7 | 25.4x2/9.52x2 |
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | 70 | 77 | 130 |
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | 126 | 135 | 126x2 |
| Standard Parts | |||||
| Optional Parts |
| Model | Indoor Unit | PEA-RP500GA | |||
| Model | Outdoor Unit | PUHZ-P250YHA3 x 2 | |||
| Capacity (Rated) | Cooling | kW | 44 | ||
| Capacity (Rated) | Heating | kW | 54 | ||
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | 17.36 | ||
| Power Input | Heating | kW | 17.42 | ||
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | 595x1,947x764 | ||
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | (1,350x950x330) x 2 | ||
| Power Supply | V/Ph/Hz | 380/3/50 | |||
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | 150 | |||
| Max. Piping | Length/Height | m | 70/30 | ||
| Piping Diameter | Gas/Liquid(Ø) | mm | 25.4x2/12.7x2 | ||
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | 133 | ||
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | 135x2 | ||
| Standard Parts | |||||
| Optional Parts |
| Model | Indoor Unit | ||||
| Model | Outdoor Unit | ||||
| Capacity (Rated) | Cooling | kW | |||
| Capacity (Rated) | Heating | kW | |||
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | |||
| Power Input | Heating | kW | |||
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | |||
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | |||
| Power Supply | V/Ph/Hz | ||||
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | ||||
| Max. Piping | Length/Height | m | |||
| Piping Diameter | Gas/Liquid(Ø) | mm | |||
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | |||
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | |||
| Standard Parts | |||||
| Optional Parts |
| Model | Indoor Unit | ||
| Model | Outdoor Unit | ||
| Capacity (Rated) | Cooling | kW | |
| Capacity (Rated) | Heating | kW | |
| Capacity (Min - Max) | Cooling | kW | |
| Capacity (Min - Max) | Heating | kW | |
| Power Input | Cooling | kW | |
| Power Input | Heating | kW | |
| COP Rating | Cooling | kW/kW | |
| COP Rating | Heating | kW/kW | |
| Dimension (HxWxD) | Indoor Unit | mm | |
| Dimension (HxWxD) | Panel | mm | |
| Dimension (HxWxD) | Outdoor Unit | mm | |
| Power Supply | V/Ph/Hz | ||
| Running Current | Cooling | A | |
| Running Current | Heating | A | |
| External Static Pressure | Pa | ||
| Max. Piping | Length/Height | m | |
| Piping Diameter | Gas/Liquid(Ø) | mm | |
| Air Volume | (Lo-Hi) | m³/min | |
| Indoor Noise Level | (Lo-Hi) | dB(A) | |
| Weight | Indoor Unit | kg | |
| Weight | Panel | kg | |
| Weight | Outdoor Unit | kg | |
| Standard Parts | |||
| Optional Parts |
Remarks
1.Please refer to the product catalogue for details.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
