PCA
Inverter Heat Pump Ceiling Suspended Type
Share on
Recently Viewed
Feature
More

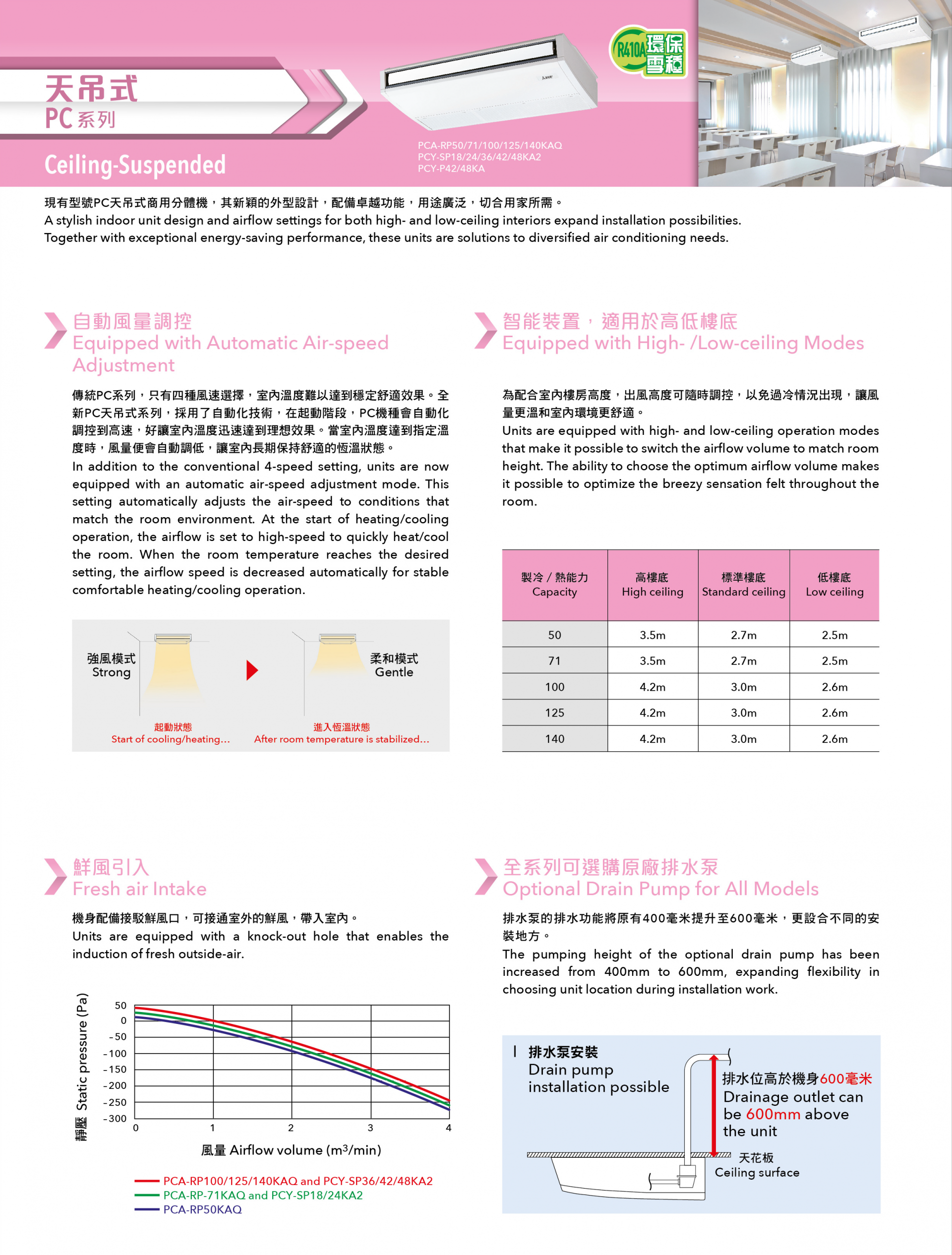

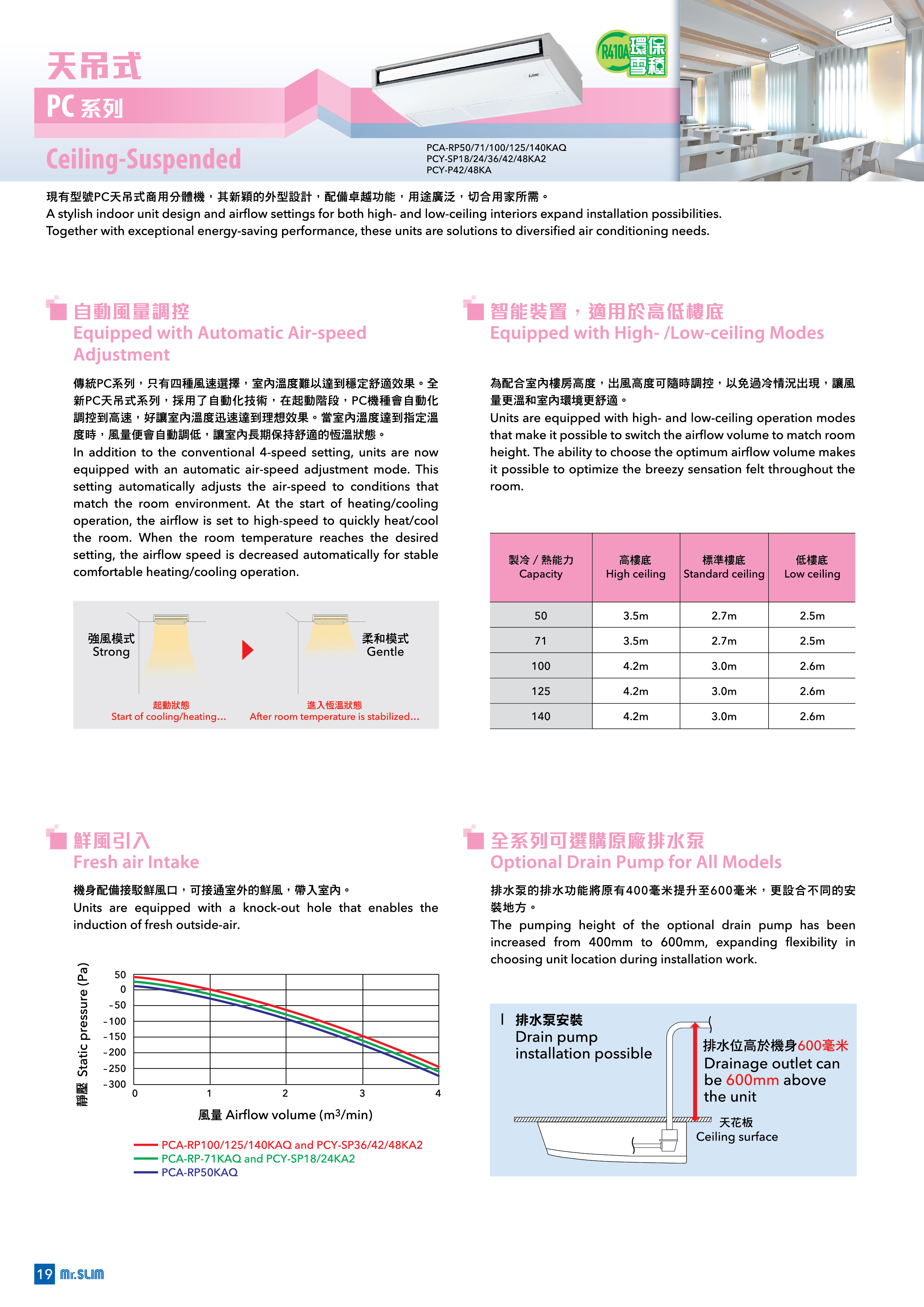

A stylish new indoor unit design and airflow settings for both high- and low-ceiling interiors expand installation possibilities. Together with exceptional energy-saving performance, these units are t
Less
Specifications
| Model | Indoor Unit | PCA-RP50KAQ | PCA-RP71KAQ | PCA-RP100KAQ | PCA-RP100KAQ | PCA-RP125KAQ | PCA-RP140KAQ | |
| Model | Outdoor Unit | SUZ-KA50VA6 | SUZ-KA71VA6 | PUHZ-RP100VKA | PUHZ-RP100YKA | PUHZ-P125VHA3-SH | PUHZ-P140VHA3-SH | |
| Capacity (Rated) | Cooling | kW | 5 | 7.1 | 10 | 10 | 12.5 | 13.7 |
| Capacity (Rated) | Heating | kW | 5.5 | 7.9 | 11.2 | 11.2 | 14 | 16 |
| Capacity (Min - Max) | Cooling | kW | ||||||
| Capacity (Min - Max) | Heating | kW | ||||||
| Power Input | Cooling | kW | 1.55 | 2.06 | 2.63 | 2.63 | 5.2 | 6.16 |
| Power Input | Heating | kW | 1.52 | 2.18 | 3.02 | 3.02 | 4.7 | 5.6 |
| COP Rating | Cooling | kW/kW | ||||||
| COP Rating | Heating | kW/kW | ||||||
| Dimension (HxWxD) | Indoor Unit | mm | 230x960x680 | 230x1,280x680 | 230x1,600x680 | 230x1,600x680 | 230x1,600x680 | 230x1,600x680 |
| Dimension (HxWxD) | Panel | mm | ||||||
| Dimension (HxWxD) | Outdoor Unit | mm | 850x840x330 | 850x840x330 | 1,338x1,050x330 | 1,338x1,050x330 | 1350x950x330 | 1350x950x330 |
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 380/3/50 | 220/1/50 | 220/1/50 | |
| Running Current | Cooling | A | ||||||
| Running Current | Heating | A | ||||||
| External Static Pressure | Pa | |||||||
| Max. Piping | Length/Height | m | 30/30 | 30/30 | 75/30 | 75/30 | 50/30 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.7/6.35 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | ||||||
| Indoor Noise Level | (Lo-Hi) | dB(A) | ||||||
| Weight | Indoor Unit | kg | 25 | 32 | 36 | 36 | 38 | 39 |
| Weight | Panel | kg | ||||||
| Weight | Outdoor Unit | kg | 54 | 53 | 116 | 124 | 94 | 94 |
| Standard Parts | ||||||||
| Optional Parts | ||||||||
|
|
|
|
|
|
|
| Model | Indoor Unit | PCA-RP50KAQ | PCA-RP71KAQ | PCA-RP100KAQ | |
| Model | Outdoor Unit | SUZ-KA50VA6 | SUZ-KA71VA6 | PUHZ-RP100VKA | |
| Capacity (Rated) | Cooling | kW | 5 | 7.1 | 10 |
| Capacity (Rated) | Heating | kW | 5.5 | 7.9 | 11.2 |
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | 1.55 | 2.06 | 2.63 |
| Power Input | Heating | kW | 1.52 | 2.18 | 3.02 |
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | 230x960x680 | 230x1,280x680 | 230x1,600x680 |
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | 850x840x330 | 850x840x330 | 1,338x1,050x330 |
| Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | |
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | ||||
| Max. Piping | Length/Height | m | 30/30 | 30/30 | 75/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 12.7/6.35 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | 25 | 32 | 36 |
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | 54 | 53 | 116 |
| Standard Parts | |||||
| Optional Parts |
| Model | Indoor Unit | PCA-RP100KAQ | PCA-RP125KAQ | PCA-RP140KAQ | |
| Model | Outdoor Unit | PUHZ-RP100YKA | PUHZ-P125VHA3-SH | PUHZ-P140VHA3-SH | |
| Capacity (Rated) | Cooling | kW | 10 | 12.5 | 13.7 |
| Capacity (Rated) | Heating | kW | 11.2 | 14 | 16 |
| Capacity (Min - Max) | Cooling | kW | |||
| Capacity (Min - Max) | Heating | kW | |||
| Power Input | Cooling | kW | 2.63 | 5.2 | 6.16 |
| Power Input | Heating | kW | 3.02 | 4.7 | 5.6 |
| COP Rating | Cooling | kW/kW | |||
| COP Rating | Heating | kW/kW | |||
| Dimension (HxWxD) | Indoor Unit | mm | 230x1,600x680 | 230x1,600x680 | 230x1,600x680 |
| Dimension (HxWxD) | Panel | mm | |||
| Dimension (HxWxD) | Outdoor Unit | mm | 1,338x1,050x330 | 1350x950x330 | 1350x950x330 |
| Power Supply | V/Ph/Hz | 380/3/50 | 220/1/50 | 220/1/50 | |
| Running Current | Cooling | A | |||
| Running Current | Heating | A | |||
| External Static Pressure | Pa | ||||
| Max. Piping | Length/Height | m | 75/30 | 50/30 | 50/30 |
| Piping Diameter | Gas/Liquid(Ø) | mm | 15.88/9.52 | 15.88/9.52 | 15.88/9.52 |
| Air Volume | (Lo-Hi) | m³/min | |||
| Indoor Noise Level | (Lo-Hi) | dB(A) | |||
| Weight | Indoor Unit | kg | 36 | 38 | 39 |
| Weight | Panel | kg | |||
| Weight | Outdoor Unit | kg | 124 | 94 | 94 |
| Standard Parts | |||||
| Optional Parts |
Remarks
1.Please refer to the product catalogue for details.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
2.There may be some differences between the products’ sizes stated in this page and those of the actual products.
