Horsepower
MXZ-3E68VA

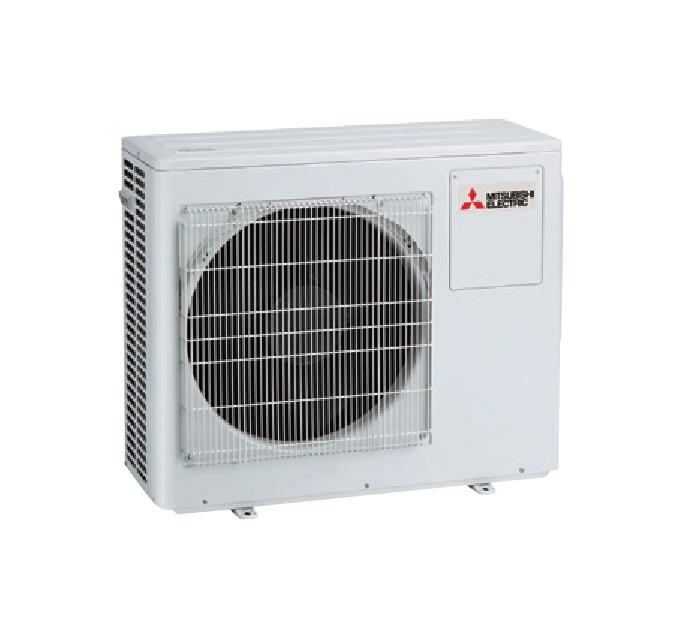

Power Multi (Multi-Split Air Conditioner) - Outdoor Unit 710 mm(H) x 840 mm(W) x 330 mm(D) R410A
Share on
Recently Viewed
Feature
More
- Quiet Operation
- Multi-connected
- Inverter Heat Pump
- Energy saving and can be used all the year round
- Well performance of Cooling Capacity
Specifications
| Model | MXZ-3E68VA | ||||
| Operation Mode | Cooling / Heating | ||||
| Cooling / Heating Capacity | Rated | kW | 6.8/8.6 | ||
| Cooling / Heating Capacity | Rated | BTU/h | 23,202/29,343 | ||
| Cooling / Heating Capacity | Min-Max | kW | 2.9-8.4/2.6-10.6 | ||
| Cooling / Heating Capacity | Min-Max | BTU/h | 9,895-28,661/8,871-36,172 | ||
| Power Consumption | Rated | kW | 2.19/2.38 | ||
| Operating Current | A | 10.1/10.9 | |||
| Noise Level | (Si) / Lo-Hi | dB(A) | 50-53 | ||
| Dimension (H x W x D) | mm | 710x840x330 | |||
| Net Weight | kg | 58 | |||
| Refrigerant Pipe Diameter | Liquid / Gas | mm | Ø6.35 x 3 / Ø9.52 x 3 | ||
| Max. Piping Height Difference | m | 15(10) | |||
| Max. Piping Height Length | Total / Out-In | m | 60/25 | ||
| Voltage | V | 220 | |||
| Phase / Frequency | 1/50 | ||||
| Refrigerant | R410A | ||||
| Air Circulation | SHi | m³/min. | |||
| Power Supply |
| Model | MXZ-3E68VA | ||||
| Operation Mode | Cooling / Heating | ||||
| Cooling / Heating Capacity | Rated | kW | 6.8/8.6 | ||
| Cooling / Heating Capacity | Rated | BTU/h | 23,202/29,343 | ||
| Cooling / Heating Capacity | Min-Max | kW | 2.9-8.4/2.6-10.6 | ||
| Cooling / Heating Capacity | Min-Max | BTU/h | 9,895-28,661/8,871-36,172 | ||
| Power Consumption | Rated | kW | 2.19/2.38 | ||
| Operating Current | A | 10.1/10.9 | |||
| Noise Level | (Si) / Lo-Hi | dB(A) | 50-53 | ||
| Dimension (H x W x D) | mm | 710x840x330 | |||
| Net Weight | kg | 58 | |||
| Refrigerant Pipe Diameter | Liquid / Gas | mm | Ø6.35 x 3 / Ø9.52 x 3 | ||
| Max. Piping Height Difference | m | 15(10) | |||
| Max. Piping Height Length | Total / Out-In | m | 60/25 | ||
| Voltage | V | 220 | |||
| Phase / Frequency | 1/50 | ||||
| Refrigerant | R410A | ||||
| Air Circulation | SHi | m³/min. | |||
| Power Supply |
Remarks
Power Consumption of outdoor unit is connected with specific indoor unit.
Test Conditions: Cooling - Indoor 27℃ DB / 19℃ WB, Outdoor 35℃ DB; DB = Dry Bulb Temp. WB = Wet Bulb Temp.
Test Conditions: Cooling - Indoor 27℃ DB / 19℃ WB, Outdoor 35℃ DB; DB = Dry Bulb Temp. WB = Wet Bulb Temp.
