Horsepower
-
3/4HP
-
1HP
-
1.5HP
-
2HP
-
2.5HP
-
3HP
-
MS-GM23VA
Split-Type Air-Conditioner
Cooling Type
2.5HP

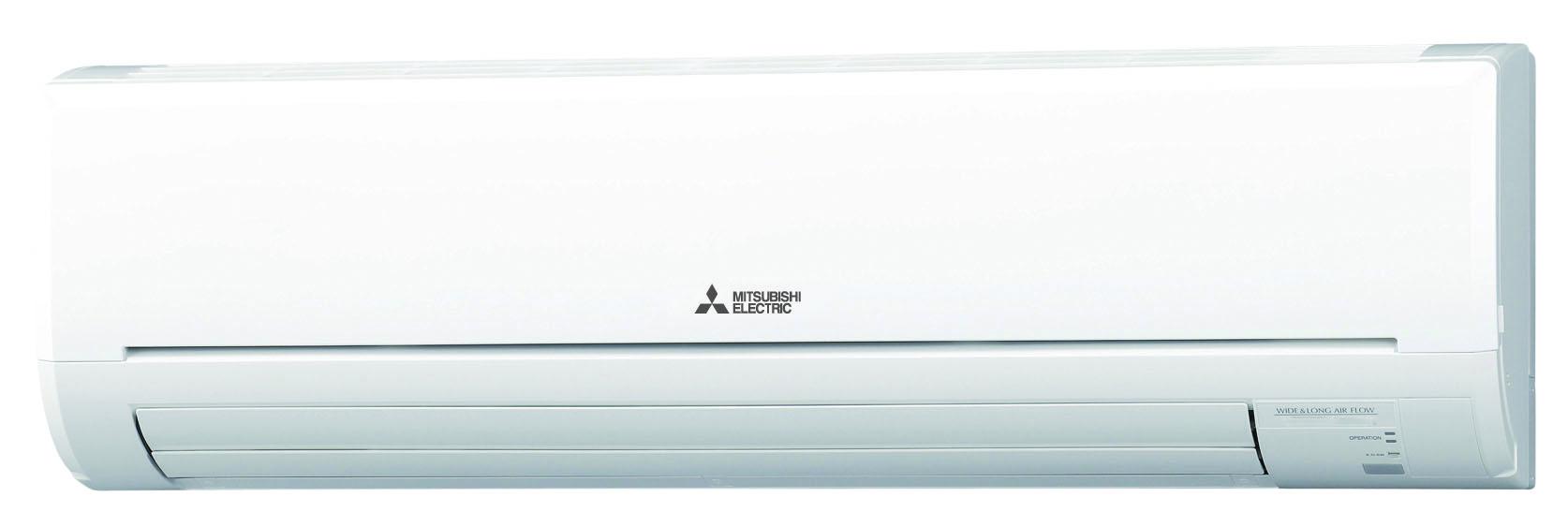

Indoor Unit: 325 mm(H) x 1,100 mm(W) x 238 mm(D)

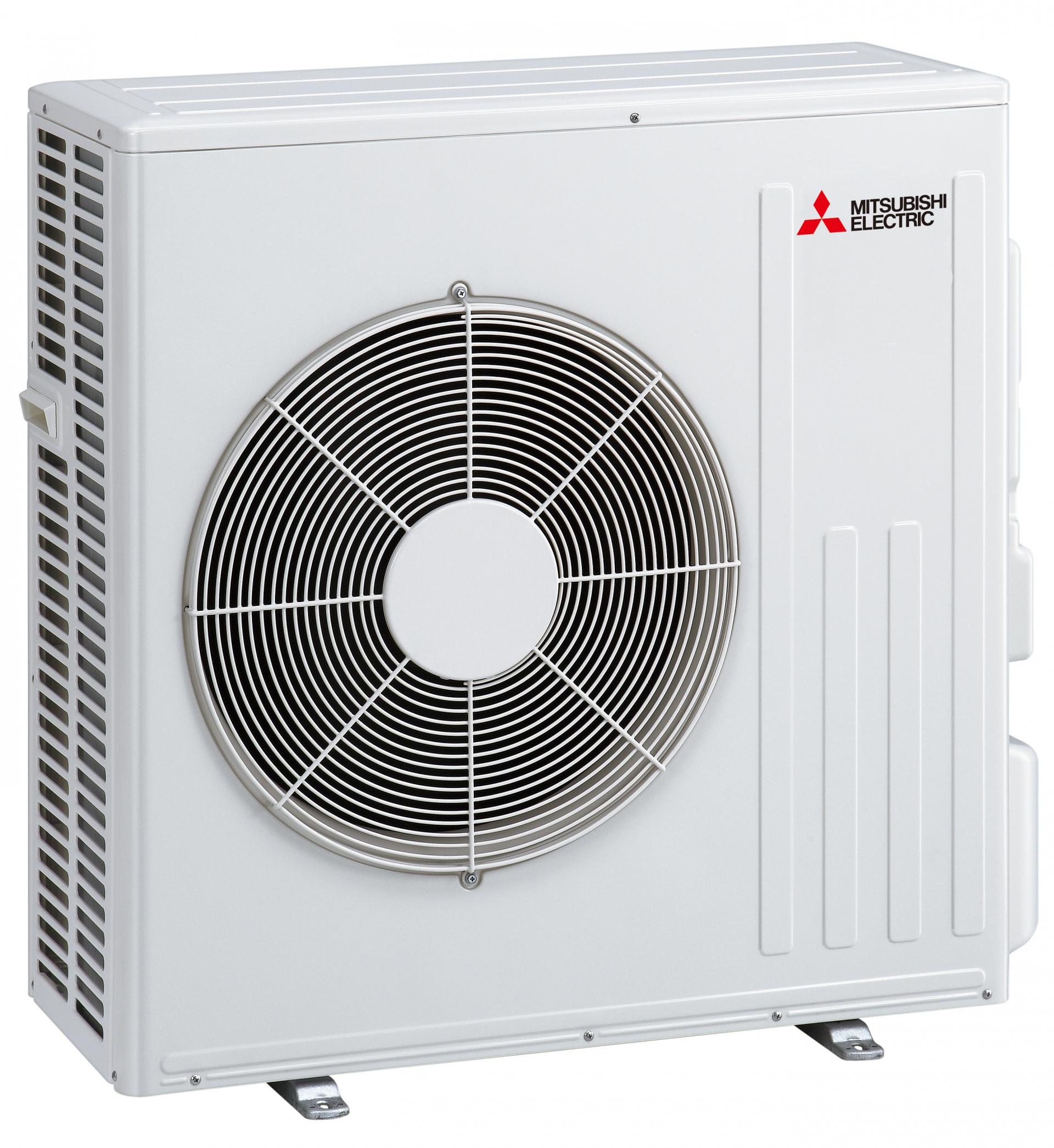

Outdoor Unit: 880 mm(H) x 840 mm(W) x 330 mm(D)
R410A
Grade 2 Energy Label
Cooling Type
2.5HP
Indoor Unit: 325 mm(H) x 1,100 mm(W) x 238 mm(D)
Outdoor Unit: 880 mm(H) x 840 mm(W) x 330 mm(D)
R410A
Grade 2 Energy Label
Share on
Recently Viewed
Feature
More
Less
Nano Platinum Filter
Computerized Dehumidification
Powerful Cool
24 Hour Pre-set On/Off
Vertical/ Horizontal Auto Swing (7 Modes)
Long-Distance Airflow
Wide Airflow
ECONO COOL
Outdoor unit only 55cm high
2 years full machine warranty & 5 years compressor warranty
Horizontal Auto Swing (7 Modes)
I Feel Control
Self Diagnosis
LCD Display Remote Controller
Noise-Reducing Design
Electric Circuit Protection
Specifications
| Model | Indoor Unit | MS-GM23VA | |
| Model | Outdoor Unit | MU-GM23VA | |
| Color | Indoor Unit | ||
| Operation Mode | Cooling | ||
| Cooling / Heating Capacity | Rated | kW | 6.60 |
| Cooling / Heating Capacity | Rated | BTU/h | 22,519 |
| Cooling / Heating Capacity | Min-Max | kW | - |
| Cooling / Heating Capacity | Min-Max | BTU/h | - |
| Power Consumption | Rated | kW | 1.83 |
| Power Consumption | Min-Max | kW | - |
| Operating Current | A | 8.60 | |
| Air Circulation | m³/min. | 22 | |
| C.O.P. | 3.61 | ||
| Dehumidifying Capacity | I/h | 2.40 | |
| Noise Level | Indoor Unit (Si)/Lo-Hi | dB(A) | 37-53 |
| Noise Level | Outdoor Unit | dB(A) | 56 |
| Dimension (H x W x D) | Indoor Unit | mm | 325 x 1,100 x 238 |
| Dimension (H x W x D) | Outdoor Unit | mm | 880 x 840 x 330 |
| Weight | Indoor Unit | kg | 16 |
| Weight | Outdoor Unit | kg | 63 |
| Refrigerant Pipe Diameter | Liquid / Gas | mm | Ø6.35 / Ø15.88 |
| Max. Piping Dimension | Height Difference / Length | m | 10 / 30 |
| Voltage | V | 220 | |
| Phase / Frequency | Single / 50Hz | ||
| Refrigerant | R410A | ||
| Energy Efficiency Grade | 2 | ||
| Optional Parts |
| Model | Indoor Unit | MS-GM23VA | |
| Model | Outdoor Unit | MU-GM23VA | |
| Color | Indoor Unit | ||
| Operation Mode | Cooling | ||
| Cooling / Heating Capacity | Rated | kW | 6.60 |
| Cooling / Heating Capacity | Rated | BTU/h | 22,519 |
| Cooling / Heating Capacity | Min-Max | kW | - |
| Cooling / Heating Capacity | Min-Max | BTU/h | - |
| Power Consumption | Rated | kW | 1.83 |
| Power Consumption | Min-Max | kW | - |
| Operating Current | A | 8.60 | |
| Air Circulation | m³/min. | 22 | |
| C.O.P. | 3.61 | ||
| Dehumidifying Capacity | I/h | 2.40 | |
| Noise Level | Indoor Unit (Si)/Lo-Hi | dB(A) | 37-53 |
| Noise Level | Outdoor Unit | dB(A) | 56 |
| Dimension (H x W x D) | Indoor Unit | mm | 325 x 1,100 x 238 |
| Dimension (H x W x D) | Outdoor Unit | mm | 880 x 840 x 330 |
| Weight | Indoor Unit | kg | 16 |
| Weight | Outdoor Unit | kg | 63 |
| Refrigerant Pipe Diameter | Liquid / Gas | mm | Ø6.35 / Ø15.88 |
| Max. Piping Dimension | Height Difference / Length | m | 10 / 30 |
| Voltage | V | 220 | |
| Phase / Frequency | Single / 50Hz | ||
| Refrigerant | R410A | ||
| Energy Efficiency Grade | 2 | ||
| Optional Parts |
Remarks
1.The product specifications are provided by factories of Mitsubishi Electric.
2.Before purchase and installation, the space and position needed for installation should be confirmed by qualified engineers.
3.Designs and specifications are subject to change without prior notice.
4.There may be some differences between the products’ sizes stated in this page and those of the actual products.
2.Before purchase and installation, the space and position needed for installation should be confirmed by qualified engineers.
3.Designs and specifications are subject to change without prior notice.
4.There may be some differences between the products’ sizes stated in this page and those of the actual products.
