MK-5010T-E1

ExtraFan
Twin nozzle design
Easy maintenance

Compare

Feature

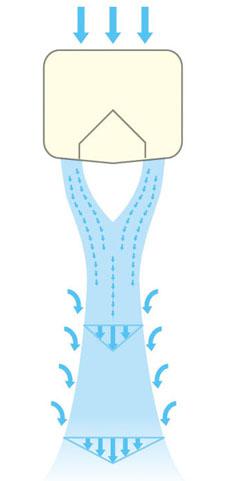

Twin Nozzle

Less

The twin nozzle design ensures that less extraneous air enters the air curtain, while the outflow is wider. Resistance to the influence of external airflow has been strengthened, greatly improving insulation against heat and cold.

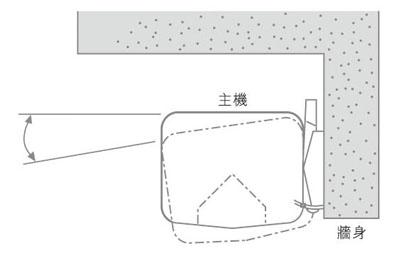

Adjustable airflow angle

By adjusting the installation angle of the main unit, the airflow angle can be altered both internally and externally.

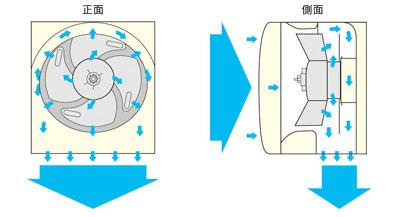

Rectification Plate

The rectification plate creates a highly directed, discshaped flow by transferring airflow from the propeller fans without reduction to volume or velocity. The plate forms the air into a smooth hemispherial wall, producing a high speed current in a single direction.

ExtraFan

New innovations in high-tech hydromechanics have made Mitsubishi Electric Extrafan run so quiet and improve the efficiency.

Specifications


Model		MK-5010T-E1
With of unit (cm)		101.8
Power		330-440/3/50
Air Volume (m3/h)	High	3950
Air Volume (m3/h)	Low	-
Current (A)	High	0.64-0.67
Current (A)	Low	-
Input (W)	High	336-368
Input (W)	Low	-
Air Velocity (m/sec)Max.	High	16
Air Velocity (m/sec)Max.	Low	-
Noise (dB)	High	62
Noise (dB)	Low	-
Starting Current (A)	High	2.3
Starting Current (A)	Low	-
Weight (kg)		25.5

Model		MK-5010T-E1
With of unit (cm)		101.8
Power		330-440/3/50
Air Volume (m3/h)	High	3950
Air Volume (m3/h)	Low	-
Current (A)	High	0.64-0.67
Current (A)	Low	-
Input (W)	High	336-368
Input (W)	Low	-
Air Velocity (m/sec)Max.	High	16
Air Velocity (m/sec)Max.	Low	-
Noise (dB)	High	62
Noise (dB)	Low	-
Starting Current (A)	High	2.3
Starting Current (A)	Low	-
Weight (kg)		25.5
