Installation
VD-23ZP4T5
Pressurized Centrifugal Fan
Use of slide over to adjust airflow speed
Use of slide over to adjust airflow speed
Share on
Recently Viewed
Feature
More

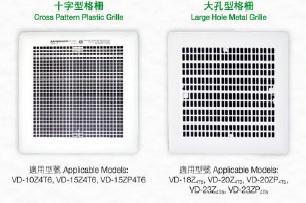

Improved design
Less
The grille design of VD series has been improved to suit for various premises. The grilles are enlarged in size and the spring device is enhanced in strength and shape, so that the grilles can be fixed firmly and closely to the ceiling.

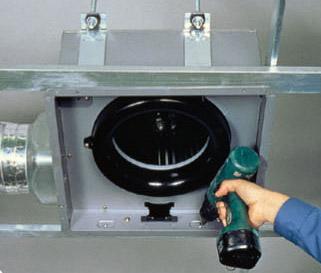

Easy installation
More
The ribs have been attached to the sides of the main unit, allowing the unit to be easiy attached to lightweight steel frame from within by means of screws.
Enhanced performance
More
Dual shutters move more smoothly, reducing deterioration with use.
Specifications
| Model | VD-23ZP4T5 | |
| Power input | V/Ph/Hz | 220/1/50 |
| Fan blade diameter | cm/inch | - |
| Current | A | 0.43/0.26 (Hi/Low) |
| Power consumption | W | 95/59 (Hi/Low) |
| Rotation speed | RPM | 930/600 (Hi/Low) |
| Air volume | CMH | 715/450 (Hi/Low) |
| Air volume | CFH | 25,250/15,892 (Hi/Low) |
| Noise | dB | 48/39 (Hi/Low) |
| Weight | kg | 9.7 |
| Model | VD-23ZP4T5 | |
| Power input | V/Ph/Hz | 220/1/50 |
| Fan blade diameter | cm/inch | - |
| Current | A | 0.43/0.26 (Hi/Low) |
| Power consumption | W | 95/59 (Hi/Low) |
| Rotation speed | RPM | 930/600 (Hi/Low) |
| Air volume | CMH | 715/450 (Hi/Low) |
| Air volume | CFH | 25,250/15,892 (Hi/Low) |
| Noise | dB | 48/39 (Hi/Low) |
| Weight | kg | 9.7 |
