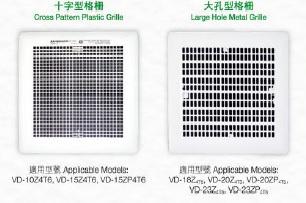

The grille design of VD series has been improved to suit for various premises. The grilles are enlarged in size and the spring device is enhanced in strength and shape, so that the grilles can be fixed firmly and closely to the ceiling.

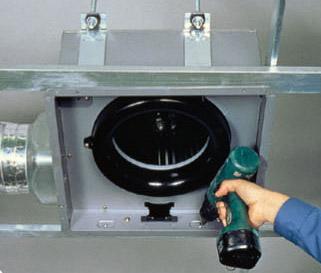

The ribs have been attached to the sides of the main unit, allowing the unit to be easiy attached to lightweight steel frame from within by means of screws.
Our innovative technology, the centrifugal fan coated with distinctive agent, helps to reduce cumulative dust and cleaning needs, enchances the product performance and extends its life time.
Model | VD-10Z4T6 | |
Power input | V/Ph/Hz | 220/1/50 |
Fan blade diameter | cm/inch | - |
Current | A | 0.05 |
Power consumption | W | 9 |
Rotation speed | RPM | 900 |
Air volume | CMH | 100 |
Air volume | CFH | 3,540 |
Noise | dB | 29 |
Weight | kg | 2.2 |
